Artec Spider II: the best 3D scanner for car parts

Summary: Is Artec Spider II the best 3D scanner for car parts?

For small detailed car parts, Artec Spider II is the strongest option in Artec’s current range, but it is not automatically the best 3D scanner for car parts. Artec specifies it at up to 0.05 mm accuracy, up to 0.05 mm resolution, a 0.19–0.3 m working distance, and real-time fusion at up to 30 fps with up to 8 mln points/s. [1]

It also settles a question that used to complicate this comparison. Spider II is the successor to Space Spider: Artec’s own page for the older scanner now calls it a legacy model and points readers to Spider II, and Artec Studio’s specifications page lists Space Spider among discontinued models that remain compatible with the software rather than among current scanners. So in 2026 the automotive shortlist is Spider II for small detailed parts, Artec Eva for larger components at up to 0.1 mm accuracy and a 0.4–1 m working distance, and a laser or hybrid metrology class when reflective surfaces and formal inspection dominate. [2] [4] [5]

The answer still changes once part size, surface condition, tolerance demands, and output goal change. If the job leans toward acceptance testing or traceable inspection, ISO 10360-13 matters, but it covers acceptance and reverification tests for optical 3D coordinate measuring systems under manufacturer-stated length conditions and cooperative surfaces, not every reflective, greasy, or awkward automotive part. [14]

Quick decision matrix: which scanner for which automotive job?

This matrix is about job fit, not declaring a winner from one brochure number. NIST notes that structured-light systems vary by configuration, projected patterns, work volumes, point densities, triangulation angles, and targets, and it separately warns that even the term “resolution” is used in multiple ways across 3D imaging. [17] [18]

What Artec’s specs actually mean (and what they don’t)

Accuracy vs resolution vs accuracy-over-distance vs repeatability

Artec does not publish one universal quality number for these scanners. Spider II separates 3D accuracy, 3D resolution, and 3D accuracy over distance instead of collapsing them into one claim, and the same was true of Space Spider before it. That matters because “up to 0.05 mm” and “0.05 mm + 0.3 mm/m” are not interchangeable: the first is the scanner’s headline accuracy figure, while the second is scale-dependent and becomes more relevant as span length and stitching increase. Artec’s product page also carries a disclaimer reserving the right to update specifications, so every figure here is a vendor-published up-to value. [1] [3]

NIST’s terminology roadmap helps explain why spec-sheet comparisons often go wrong. It notes that “resolution” can refer to spatial resolution, image resolution, depth resolution, the smallest discernible feature, the smallest detectable lateral or depth change, angular resolution, and more. NIST’s structured-light error work adds a second warning: scanner behavior changes with configuration, projected patterns, sensor/work volume, point density, triangulation angles, and targets, so a single accuracy line cannot fully predict mesh quality or CAD usability on actual automotive parts. [18] [17]

ASTM E2544-24 exists to standardize terminology for 3D imaging systems, which is a useful reminder to keep these terms separate. [19]

• Accuracy is the closeness of a measured value to the actual value being measured. [4]
• Resolution is the system’s ability to resolve detail, but the term itself is broader than one universal number. [4] [18]
• Repeatability is the variation in results over repeated measurements across short or long periods. [18]
• Point cloud is a scattered set of measured 3D points. [22]
• Mesh is a polygonal model made from many non-continuous triangles. [22]
• CAD model is a continuous or exact model used downstream in CAD/CAM workflows rather than a triangle-only surface. [7] [22]

Repeatability for Spider II, Eva, or the legacy Space Spider: no reliable published figure found. [1] [3] [4]

Structured light vs laser scanning for automotive parts (class-aware)

Structured-light scanners project patterns onto a surface, capture those patterns with cameras, and reconstruct geometry through triangulation before software aligns and fuses many frames into a point cloud or mesh. Spider II uses a 450 nm blue LED for the 3D pattern and a separate white LED array at 4000 K with CRI above 95 for texture, which is why it produces usable colour data alongside geometry. For automotive reverse engineering, that usually means good performance on accessible geometry with visible surface detail, but also sensitivity to setup, object finish, and scan strategy. NIST’s error analysis is the key caveat: projected patterns, work volumes, point densities, triangulation angles, and target use all influence what the scanner actually delivers on the part in front of you. [1] [17]

Laser and hybrid systems enter the discussion for different reasons. Many are positioned around reflective-surface work and more formal inspection workflows. One laser-class example lists 0.025 mm accuracy and 0.020 mm + 0.040 mm/m volumetric accuracy, with acceptance testing based on VDI/VDE 2634 Part 3. One hybrid/laser example markets 0.02 mm accuracy, 0.02 + 0.033 mm/m volumetric accuracy, and VDI/VDE 2634 Part 3 plus ISO 10360 certification language from an ISO/IEC 17025 accredited lab. Those figures help explain why some shops choose those classes for reflective or inspection-driven jobs, but they do not make laser automatically better for every reverse-engineering task. [20] [21]

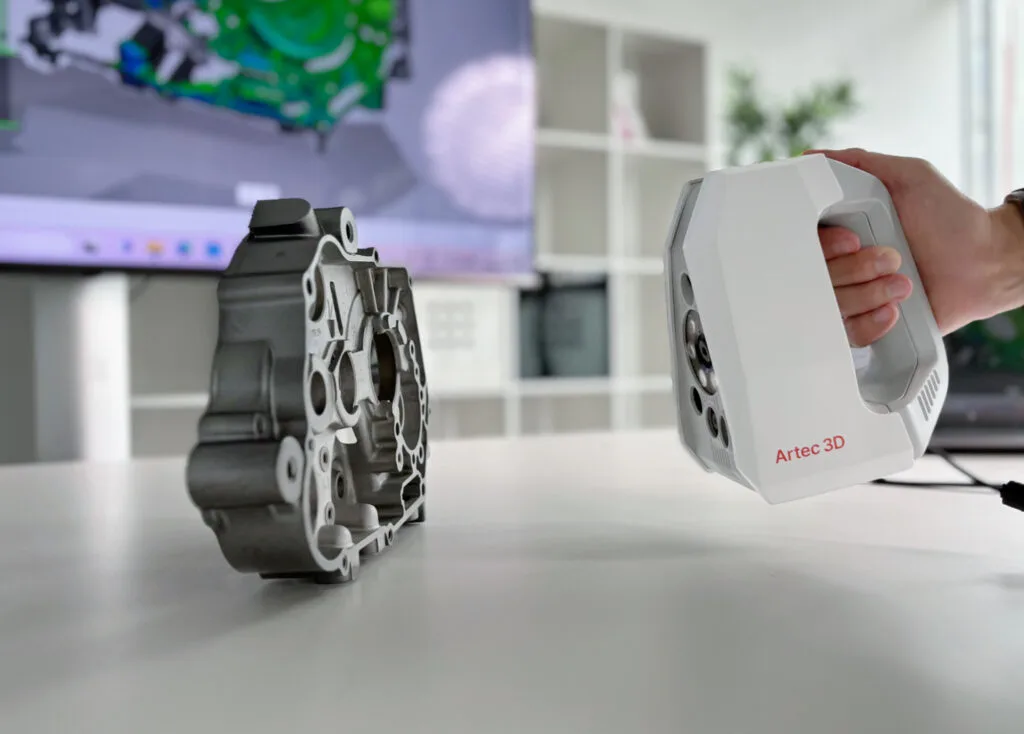

Spider II specs that matter for car parts

For automotive reverse engineering, the useful Spider II specs are the ones that change whether you get usable geometry, not the ones that merely decorate a brochure. [1]

• 3D accuracy: up to 0.05 mm. This is the headline dimensional spec and the main reason Spider II is the close-range choice for small detailed parts. [1]
• 3D resolution: up to 0.05 mm. This affects how finely the system can represent small edges, ribs, and embossed marks in the scan data — and it is the figure that doubled relative to the legacy Space Spider’s 0.1 mm. [1] [3]
• 3D accuracy over distance: up to 0.05 mm + 0.3 mm/m. This is the scale-dependent term that becomes important when features are spread across a longer stitched region. [1]
• Working distance: 0.19–0.3 m, with a 110 mm depth of field. This defines how close you must physically get to the part, which matters around recesses, brackets, and tight under-dash access. [1]
• Field of view: 128 × 104 mm at closest range to 171 × 152 mm at furthest, with a 1,800 cm³ volume capture zone. This determines how much of the part fits in each capture window and therefore how many passes you must stitch. [1]
• Throughput: up to 30 fps and up to 8 mln points/s. These figures affect capture pace and data density expectations, but they should not be mistaken for guaranteed scan quality. [1]
• Texture: 5 MP at 24 bpp. On automotive parts that matters for reading stamped part numbers, casting marks, and wear patterns off the colour data rather than the mesh. [1]
• Physical and host requirements: 0.95 kg, 187 × 156 × 118 mm, Thunderbolt 4 host, DC 24 V adapter, Windows 10 x64 or Windows 11. Artec’s recommended configuration is a 13th- or 14th-generation Intel Core i7 or i9 with an RTX 4070 8 GB. [1]
• Export formats: mesh, CAD, and measurement outputs are all listed — OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57 and XYZRGB for mesh; STEP, IGES and X_T for CAD; CSV, DXF and XML for measurements. [1]

In practice, those specs make Spider II useful on clips, brackets, housings, stamped identifiers, and worn edges where you can stay close and keep critical features inside a small capture window. They do not make it a natural first choice for large body panels, whole assemblies, or any job where broad coverage matters more than fine local detail. [1]

Turning “small-to-medium” into a defensible part-size boundary

“Small-to-medium” only becomes useful once you translate it into scan geometry. Spider II’s published working distance is 0.19–0.3 m, and its field of view runs from 128 × 104 mm at close range to 171 × 152 mm at the far end of that envelope, inside a 1,800 cm³ volume capture zone. In shop terms, the scanner is happiest when you can keep the part close, keep features overlapping from pass to pass, and avoid turning one compact object into a large stitching project. [1]

Once the part stretches beyond that close-range window, the key risk shifts from “can the scanner see the detail?” to “can the stitched data preserve the relationships that matter?” Spider II’s scale-dependent term is published as up to 0.05 mm + 0.3 mm/m, which is useful context for longer spans but not a guarantee that a stitched larger part behaves like a single rigid metrology setup. NIST’s structured-light work is the caution here: error sources vary with configuration and with the real object, not just the nominal spec line. [1] [17]

Using the manufacturer formula purely as a derived example gives the following values. [1]

These are arithmetic examples, not independent proof of whole-part fit. For mounting holes, mating faces, and registration features, minimizing stitching is usually more important than repeating the smallest brochure number. [1] [17]

Scan-to-CAD workflow for automotive parts (what’s native to Artec Studio vs what isn’t)

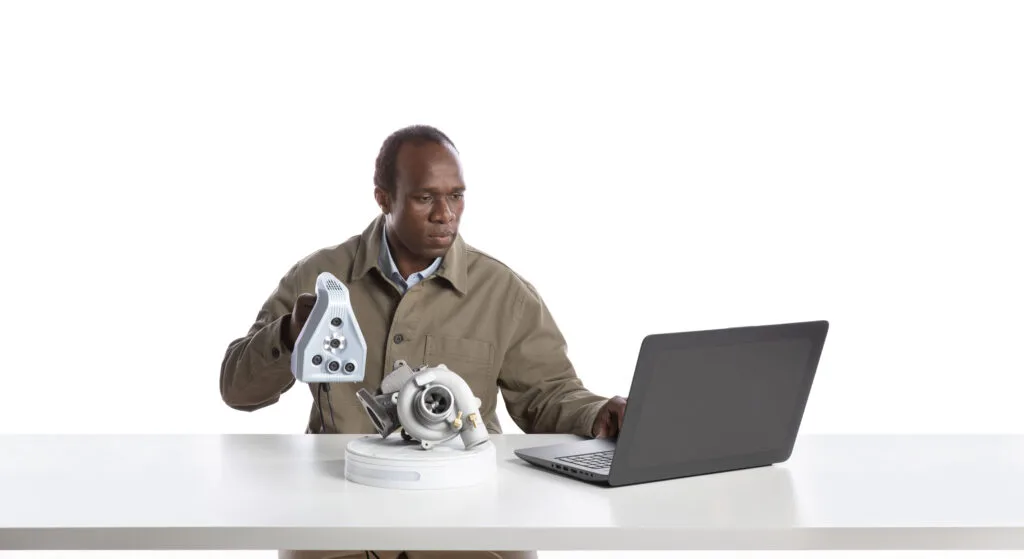

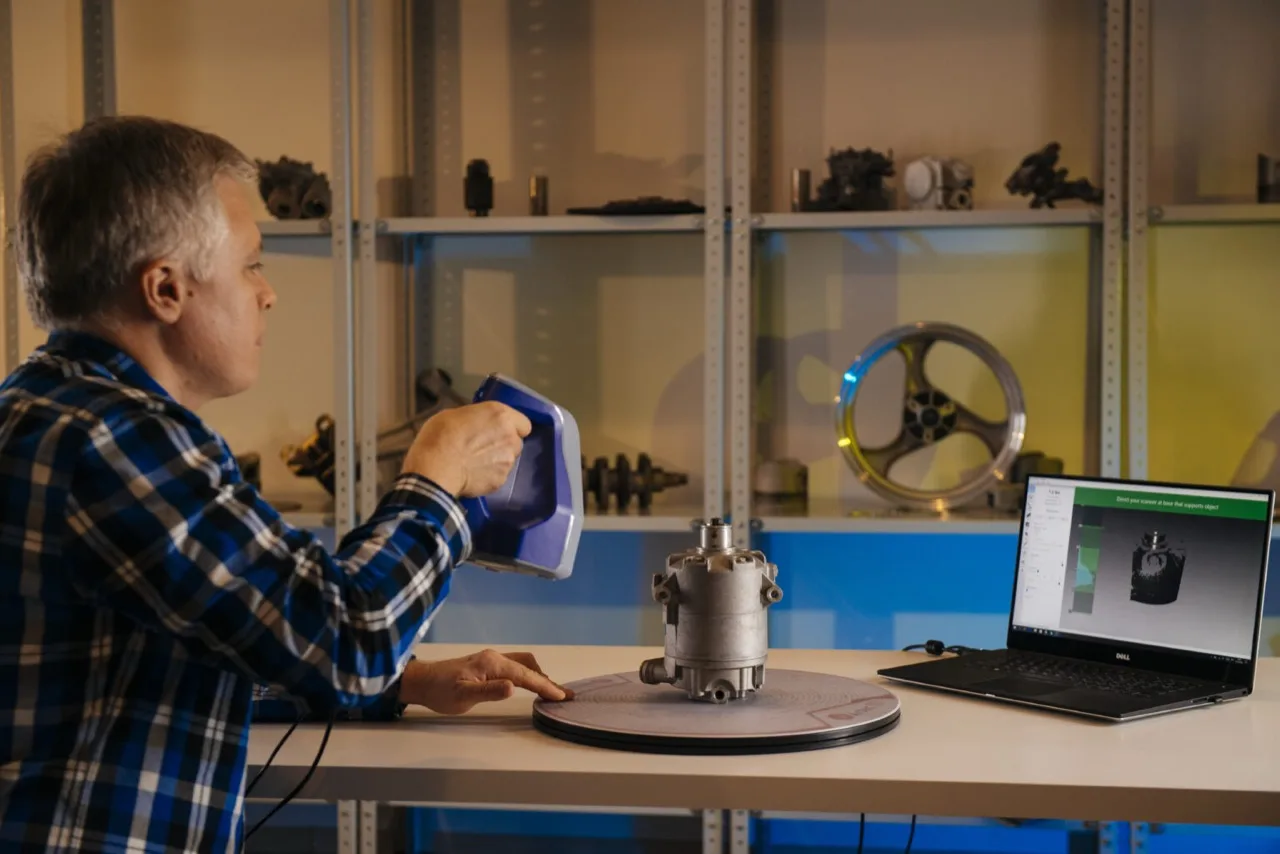

A practical Artec Spider II scan to CAD workflow starts with the measurement question, not the scanner. Artec Studio positions its reverse-engineering tools around 2D profiles, primitive extraction, constraints, mesh-to-CAD surfacing, and export to SOLIDWORKS or Design X, while Leica’s reverse-engineering documentation describes the broader surfacing chain from mesh or point cloud to polylines, curves, and fitted NURBS or BSpline surfaces exported as IGES or STEP. [6] [22]

• Define the goal and tolerance, because a reference mesh, a repair surface, and a production CAD model are not the same deliverable. [22]
• Prep the surface only if needed, especially on shiny, transparent, or otherwise difficult parts. [8]
• Capture overlapping passes while staying inside the scanner’s intended envelope and keeping alignment stable. [1] [6]
• Register, fuse, and clean the scan data so the mesh represents the part rather than the environment around it. [6]
• Extract 2D profiles where section geometry actually carries design meaning. [6]
• Fit primitives only where the geometry is genuinely simple, such as cylinders, cones, spheres, planes, toruses, or boxes. [7]
• Build surfaces from the cleaned data or curve network, then export CAD-compatible formats such as IGES or STEP when appropriate. [7] [22]
• Validate the result against the scan and the physical part before trusting it for fit-sensitive work. [22]

The important limitation is that CAD-compatible export is not the same thing as automatic design-intent recovery. Artec Studio documentation states that an autosurface model can be exported to external CAD software as a CAD model, but feature logic, constraints, tolerances, and manufacturability decisions still sit with the user or with downstream CAD and reverse-engineering tools. [6] [7]

Reflective metal, glossy black plastic, glass: surface prep and its metrology cost

Optical scanners struggle when light reflects specularly, gets absorbed, or passes through the part instead of returning as a clean signal. That is why glossy black plastic, chrome-like trim, polished metal, and glass are common problem cases. Artec’s own support guidance says spray is seldom required thanks to the Sensitivity feature in Artec Studio, but adds that objects that are too shiny, too transparent, or otherwise difficult to capture may still need it. [8]

That prep has a measurement cost. AESUB Blue publishes a layer thickness of 8–15 μm, which is 0.008–0.015 mm, along with an effective scan time of about 1–2 hours and a sublimation time of about 4 hours. On a rough reverse-engineering job that may be acceptable, but when the scanner’s own resolution figure is 0.05 mm, a 0.015 mm coating is not a free variable. [9] [1]

The Car SOS center-console example is useful because it shows the tradeoff in context. In that manufacturer case study, AESUB Blue matting spray was used, and the part was prepared, scanned, and processed from captured data into a mesh and then a CAD model in Artec Studio within an hour, with additional modeling in Fusion 360 and about eight more hours of printing afterward. It is a practical workflow example, not an independent benchmark. [11]

Reverse engineering vs traceable inspection (standards boundary section)

Reverse engineering and traceable inspection answer different questions. Reverse engineering is usually about capturing geometry well enough to rebuild, modify, or reference a part. Traceable inspection is about verifying performance within a defined acceptance or reverification procedure, often with specific artifacts, conditions, and documentation. A small accuracy number on a brochure is not the same as a traceable acceptance test for your specific part and surface. ISO 10360-13:2021 is the relevant standards anchor because it specifies acceptance and reverification tests for optical 3D coordinate measuring systems when measuring lengths as stated by the manufacturer, and only when the surface characteristics are restricted and within a cooperative range. [14]

That standards context has also moved on from older VDI/VDE guidance. DIN EN ISO 10360-13:2023-11 is the current DIN/EN adoption of ISO 10360-13:2021, and DIN Media notes that the publisher recommends it in lieu of withdrawn VDI/VDE 2634 Blatt 2 and Blatt 3 documents. VDI/VDE 2634 Blatt 3:2008-12 is still useful historical context for how multi-view area-scanning systems were framed, but it is no longer the main current reference point. [15] [16]

What happened to the Space Spider, and does it still matter?

If you have been researching Artec scanners for automotive work for more than a couple of years, Space Spider is the name you will have seen most often. It is no longer a current product. Artec’s page for the model states plainly that Space Spider is a legacy scanner and directs readers to its successor, Artec Spider II, and Artec Studio’s specifications page groups it with Micro, Ray, Spider and other discontinued models that remain compatible with the software rather than with the current line-up. [2] [5]

That distinction is practical rather than academic. A Space Spider you already own is still a working scanner with up to 0.05 mm accuracy, up to 0.1 mm resolution, a 0.2–0.3 m working distance and a 90 × 70 mm to 180 × 140 mm field of view, and Artec Studio will keep opening its data. What you do not get is a current warranty path, the 5 MP texture camera, or the four-fold jump in capture speed. For a used purchase, that trade can still make sense on a tight budget; for a new purchase, Spider II is the only route into this class. [2] [3] [1]

Spider II vs Eva vs the legacy Space Spider (automotive reverse engineering fit)

All three models discussed here are handheld structured-light scanners, but only two are current products, and they sit in different working envelopes. Spider II is the current close-range high-detail option, Eva is the broader-coverage tool when part scale begins to overwhelm the small-part logic, and Space Spider is the discontinued predecessor that still turns up in shops and on the used market. [1] [2] [4]

The simplest decision rule for Artec Eva vs Artec Spider II for automotive reverse engineering is this: choose Spider II when the part is compact and the important geometry is local, and choose Eva when working distance, field of view, and reduced stitching matter more than the last bit of small-feature density. [1] [4]

When Spider II is not the best 3D scanner for car parts

Spider II is the wrong tool when the job is dominated by large smooth panels, awkward in-situ reach, whole-vehicle context, or surfaces that remain optically difficult even after reasonable prep. Its 0.19–0.3 m working distance and 1,800 cm³ capture zone are helpful on compact detailed parts, but limiting under a car, across a door skin, or around large interior trim assemblies. There is also a workshop-logistics constraint: Spider II is tethered to a Thunderbolt 4 host and mains power, so a wireless scanner is a different proposition for in-situ work on a lift. If the real problem is hidden internal geometry, optical handheld scanning is simply the wrong modality; CT is a different tool class. [1] [8]

The alternative should be chosen by class, not by hype. Within Artec’s range, Eva is the better coverage option. Outside that family, laser or hybrid metrology systems are often chosen when reflective-surface behavior, inspection framing, or certification language matters more than handheld structured-light convenience. [4] [20] [21]

Vendor automotive examples (useful, but not independent benchmarks)

Artec’s own automotive application page is useful as a scale illustration, not as proof of universal performance. It lists a radiator grille scanned with Leo in 7 minutes, a crankshaft in 8 minutes, a hubcap with Eva in 6 minutes, a carburetor with Space Spider in 30 minutes, and a semi-trailer truck with Ray II over 6 hours. Several of those timings predate Spider II and were captured on the older scanner, so read them as a map of part scale rather than as current throughput figures. The pattern still holds: scanner choice changes with scale and capture strategy. [10]

The same caution applies to manufacturer case studies. Ruffian Cars used Eva for the entire car and Space Spider for individual components, while the Ford Eifel restoration workflow used Eva for body, interior, and frame capture and ended with a point cloud, polygon model, and texture dataset. These examples are useful for understanding the split between broad coverage and small-part detail, but they are not independent accuracy benchmarks, and the small-part half of that split would now be done on Spider II. [12] [13]

Verdict: the best 3D scanner for car parts depends on the part

For small detailed automotive parts, Spider II is the strongest current option in Artec’s range, but it is not automatically the best 3D scanner for car parts. Artec lists up to 0.05 mm accuracy and up to 0.05 mm resolution, with 30 fps real-time fusion — good enough to make the capture session itself easy, and still not a substitute for a validation plan. [1]

• Spider II fits small detailed parts where close-range access is easy and fine local geometry drives the deliverable. [1]
• Eva is the better fit when the job grows into larger housings, broader trim sections, or vehicle-scale reference capture. [4]
• Space Spider is only worth considering as a used unit you already own or can buy cheaply, with legacy status accepted. [2] [5]
• Laser or hybrid metrology class belongs in the conversation when reflective surfaces, inspection workflows, or certification language start to dominate the requirement. [20] [21]

Validation still sits downstream of scanning, regardless of which class you choose. [14] [22]

FAQ

Is the Artec Space Spider still sold?

No. Artec’s page for the model states that Space Spider is a legacy scanner and points to its successor, Artec Spider II. Artec Studio still lists it among discontinued models that remain compatible with the software, so existing scanners keep working, but a new purchase in this class means Spider II. [2] [5]

Is Artec Spider II good for scan to CAD?

Yes, if the part is small enough and the goal is realistic. Artec Studio’s reverse-engineering tools are positioned around 2D profiles, primitive extraction, constraints, mesh-to-CAD surfacing, and export to downstream tools such as SOLIDWORKS or Design X. That means it can support scan-to-CAD work well, but the result is still a reconstruction workflow rather than automatic recovery of original design intent. [6] [7]

Is Artec Spider II the best 3D scanner for car parts?

Only for a defined slice of the problem. It is strongest on small detailed parts that fit a close-range structured-light workflow, especially where feature density matters more than coverage. Once parts get larger, harder to access, or more inspection-driven, the answer changes quickly and the standards boundary matters more. [1] [14]

Artec Eva vs Artec Spider II for reverse engineering: which to choose?

Use Spider II when the critical geometry is local and compact, and use Eva when broader coverage and easier standoff matter more. The practical differences are Spider II’s 0.19–0.3 m working distance and 1,800 cm³ capture zone versus Eva’s 0.4–1 m working distance and 61,000 cm³ envelope. That makes Spider II better on clips and brackets, and Eva easier on larger panels, housings, and vehicle reference areas. [1] [4]

How much better is Spider II than the Space Spider it replaced?

On paper, the resolution figure halves from up to 0.1 mm to up to 0.05 mm, real-time fusion rises from up to 7.5 fps to up to 30 fps, acquisition goes from up to 1 to up to 8 mln points/s, and texture moves from a 1.3 MP to a 5 MP sensor. Headline accuracy stays in the same up to 0.05 mm class. The practical effect on automotive parts is more detail per pass and a calmer scan session, not a change of scanner class. [1] [2] [3]

Can Spider II scan glossy black, chrome, or glass car parts?

Sometimes, but those are exactly the surfaces that often cause trouble for optical systems. Artec says spray is seldom required overall, yet shiny, transparent, or otherwise difficult objects may still need it. If you use a vanishing spray such as AESUB Blue, remember that the coating itself has a published thickness in the 8–15 μm range, so it becomes part of the measurement chain. [8] [9]

Does Artec Spider II produce a CAD model automatically?

No. It can capture scan data, help you fit primitives or build autosurfaces, and export CAD-compatible outputs, but a usable engineering model still depends on decisions about sections, surfaces, constraints, and intended function. Leica’s reverse-engineering workflow description is a useful reminder that mesh or point cloud data often has to be turned into curves and then into fitted surfaces before it behaves like real CAD. [7] [22]

What standard applies if I want traceable accuracy claims from an optical 3D scanner?

ISO 10360-13:2021 is the core reference for acceptance and reverification testing of optical 3D coordinate measuring systems when measuring lengths as stated by the manufacturer, and it applies only within a cooperative surface range. For DIN/EN context, the current adoption is DIN EN ISO 10360-13:2023-11, which DIN Media recommends in lieu of withdrawn VDI/VDE 2634 Blatt 2 and Blatt 3 guidance. [14] [15]
