Preview: 3D Room Scanning with Canvas & Structure Sensor

Occipital, makers of the Structure Sensor I reviewed earlier, has released Canvas — a Free 3D Room Scanning app for iPad.

When I give a presentation about 3D scanning, one question I always get is if it’s possible to 3D scan an entire room. I alway counter this with asking what the intended purpose is: aesthetically or metrical. The problem with the former is that 3D scanning technology doesn’t give eye-pleasing results yet so at this time we’re still bound to using 360° photography for virtual real estate tours.

Matterport offers an end-to-end hardware/software solution for virtual tours by cleverly combining simultaneously captured 360° photos for the tours themselves and 3D scans for overviews and measurements. I think it’s great for real estate and that’s a market where the pricing is probably justifiable.

But there are a lot of markets that are looking for a easy-to-use, affordable and portable solution for doing measurements quickly. Until now, I’ve given people demos with the Structure Sensor and Room Scanner app. But while this software shows the potential of Room Scanning with a depth sensor, it was still a sample app with limited functionality.

canvas-structure-sensor-header

That has changed today with the introduction of Canvas, a new app by Structure Sensor manufacturer Occipital. It takes the concept of the Room Scanner app to the next level by adding the ability to walk around while scanning so you can scan a room from corner to corner. Also added is a project management function that let’s you open saved rooms later for taking measurements, or exporting the scan data to a 3D file format.

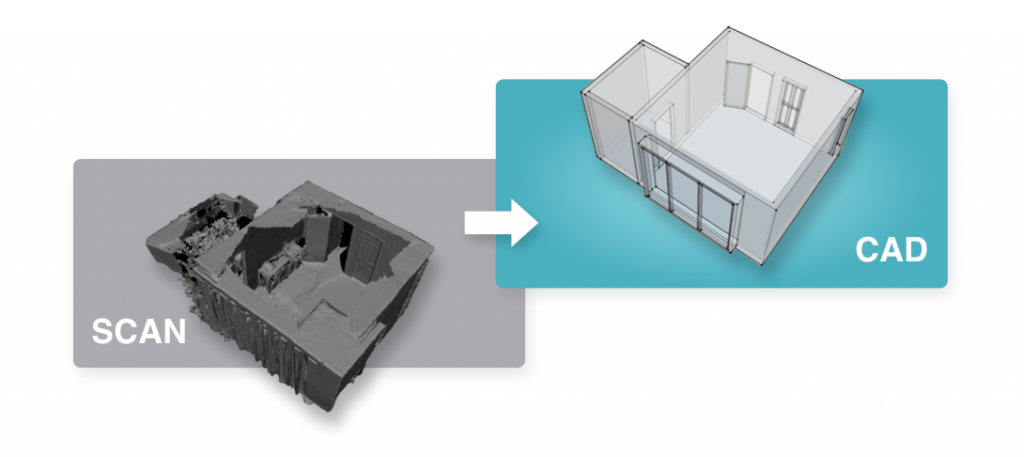

canvas-structure-sensor-scan-to-cad

On top of that, Occipital also offers a Scan to CAD service implemented into Canvas. This service comes at a flat fee of $29 for which your 3D scan — which is size-accurate, but not very eye-pleasing or useful for virtual styling — is converted to an clean, organized 3D CAD file. This file will be supplied within 2 business days in .SKP (SketchUp), .DWG (AutoCAD) or .DAE (Collada, works with many 3D applications) format. For comparison, Matterport offers a similar 2-business-days service called Schematic Floor Plans for $36 per plan, but this is limited to a 2D floor plan in PDF or PNG format.


[wp_ad_camp_5]


A Quick look at Canvas in Action

I almost always have my iPad mini 2 and Structure Sensor in my bag, so I couldn’t resist to download Canvas from the App Store (it’s Free!) right away.

The Scan to CAD service and the promo video seem to be targeted at professionals, but the Canvas splash screen contains the slogan “A New Powerful Tool for Home Improvement”. I’m in the middle of remodeling my kitchen, so I feel the connection. I think software like this is handy for anyone that has to take a lot of measurements.

Unfortunately, my good old iPad mini 2 doesn’t seem to be Canvas’ best friend:

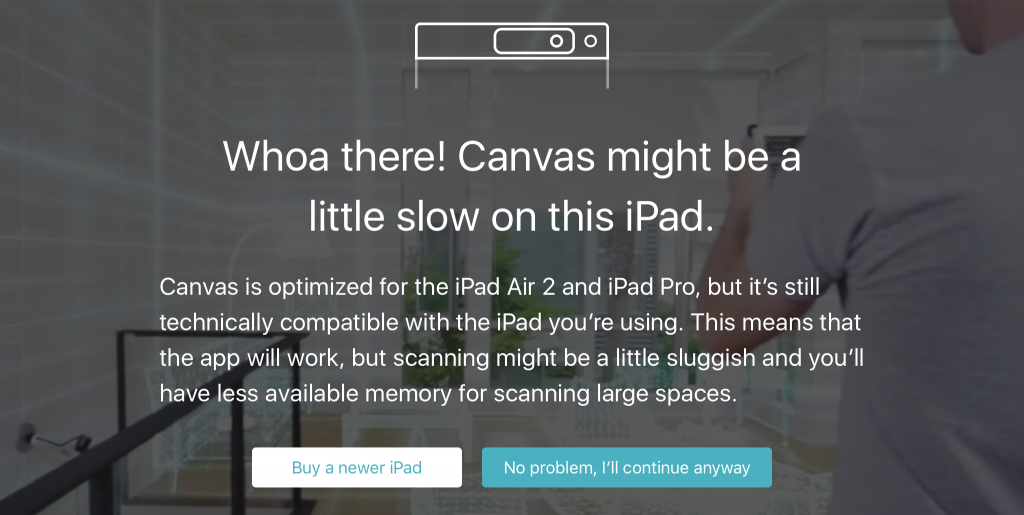

canvas-structure-sensor-cad-ipad-message

I wasn’t in the mood to buy a new iPad, so I decided to test with my unfit tablet anyway. I could scan about one third of my living room while walking around before the memory was full. This is clearly depicted by an indicator in the top right corner that turns orange and then red if memory gets really full.

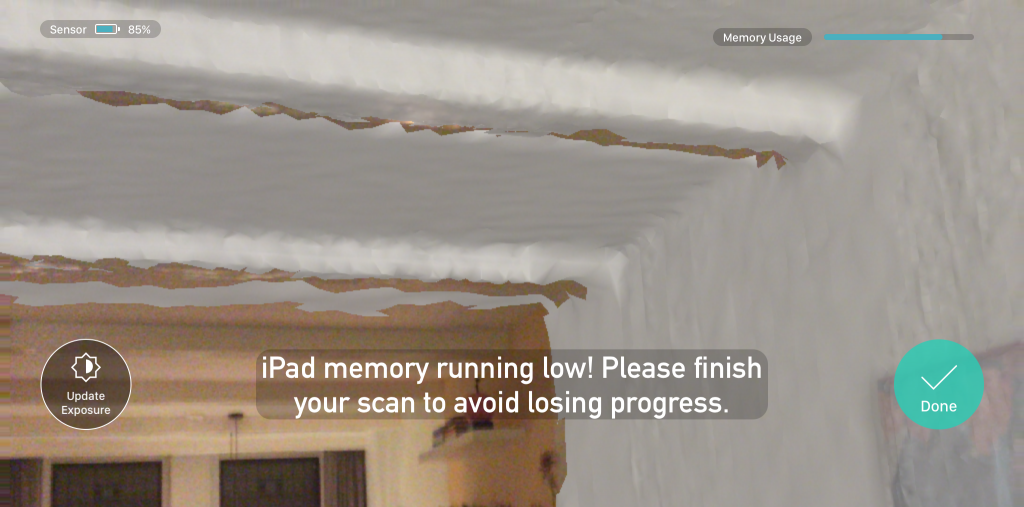

canvas-structure-sensor-ipad-memory

The app automatically finishes scanning when there’s no more room in the RAM for extra polygons.

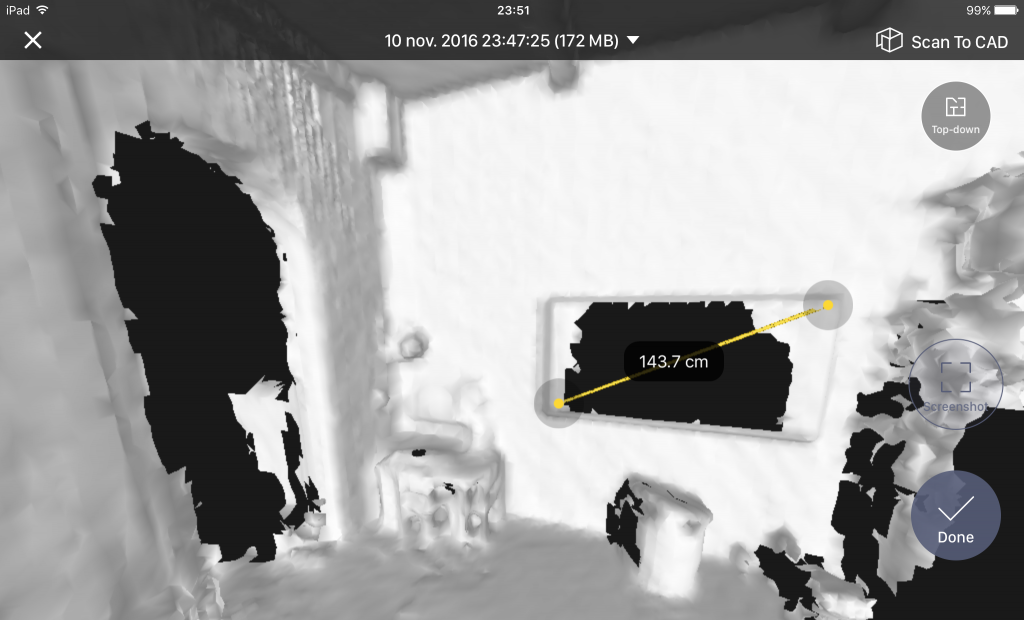

canvas-structure-sensor-measurement-tv

Measuring works the same as with the original Room Scanner app and allows toggling between inches and centimeters. New is the possibility to see the model from a top-down view.

canvas-structure-sensor-home-sorting

As you can see, the hierarchy let’s you create new Homes. After that you can add multiple rooms per Home. I called my living room “Home” in this case, but you can rename them afterwards.

Overall, Canvas is a well-designed app. Occipital has taken great care to make 3D scanning approachable for newcomers, with a clear onboarding procedure and a in-app selection of tips

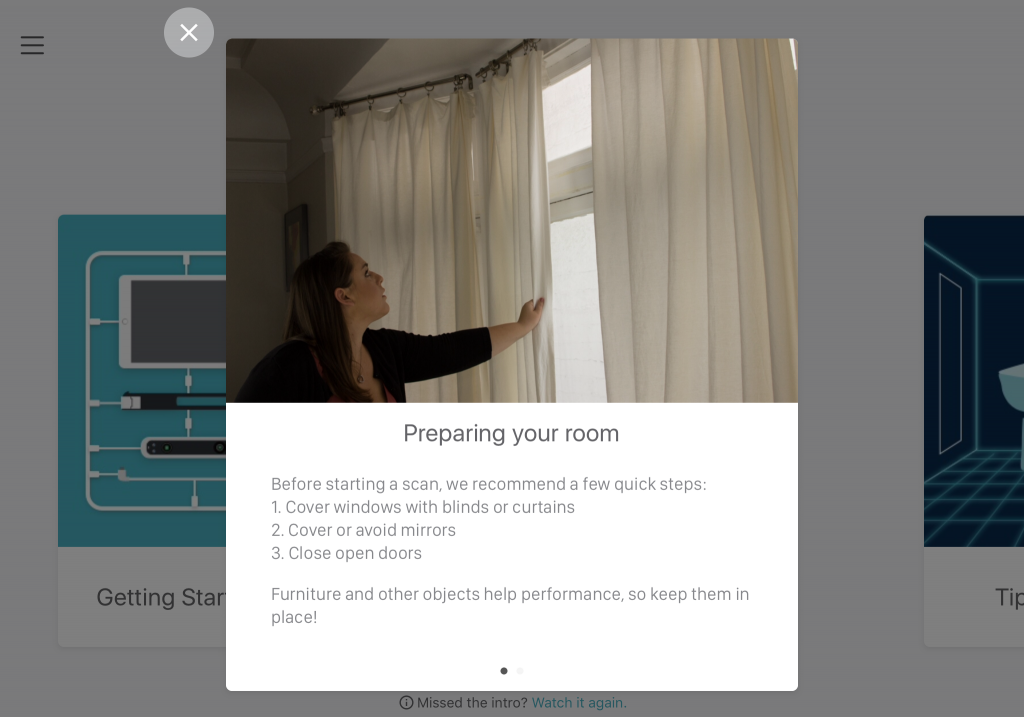

canvas-structure-sensor-tips


So this was a quick walkthrough of the new Canvas 3D Room Scanning app for Structure Sensor. Of course I want to turn this post into an in-depth test that’s in line with my other 3D scanner reviews, but I guess I’ll have to give myself a new iPad — and the new Wide Vision Lens for the Structure Sensor — for Christmas first.

Follow me on your favorite social network if you want to know when I’ve tested Canvas to the full by clicking one of the buttons below.
